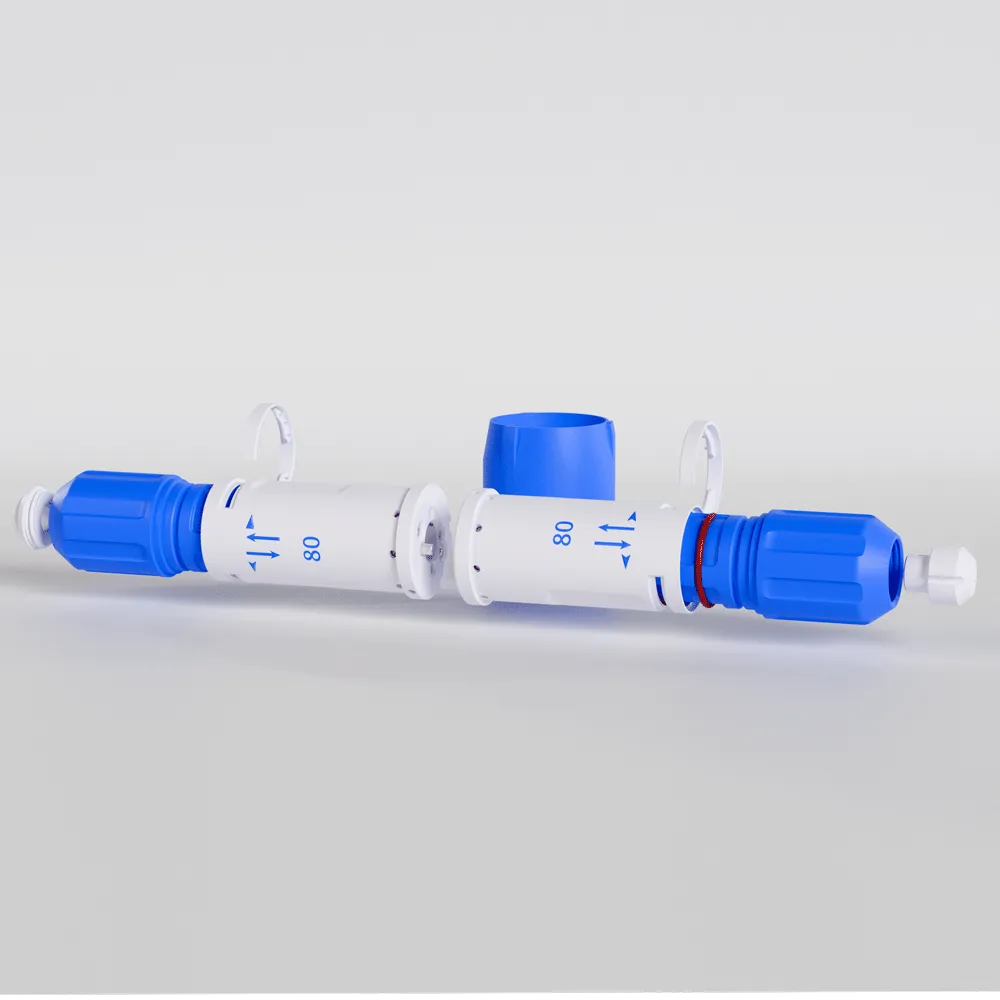

U-Handle: universal catheter dual actuator handle for Delivery System prototyping
Select in the configurator below your options :
- External and internal tube diameter.
- Stroke length for internal and external diameter.
Note : if you select the Steerable option only 120mm stroke is available.
Accelerate the development of your catheter delivery system with the ProtoBrix U-Handle: a universal, off-the-shelf catheter handle designed for rapid prototyping and testing.
Made for R&D engineers, this modular actuator handle is ideal for catheters and minimally invasive delivery systems. By providing precision control out-of-the-box, the U-Handle helps you validate your concept faster and with greater confidence.
🔧 Key Features:
- Dual actuator system: Front and rear actuators provide precise push-pull control of two concentric components perfect for simulating sheath and implant deployments.
- Steerability-ready: The front actuator connects to a deflectable catheter section for advanced steering and navigation simulations during testing.
- Broad compatibility: Supports catheter shafts from 4 Fr up to 36 Fr in diameter, covering a wide range of prototype sizes and interventional applications.
- Guidewire integration: An optional central lumen accommodates a guidewire or delivery cable, accessible via a rear port, to replicate over-the-wire delivery techniques.
What’s in the box?
Shipped as a ready-to-assemble kit. The actuator housing and internal mechanisms come pre-assembled. Simply insert your specific tubing or shafts (outer and inner) using the provided instructions.
